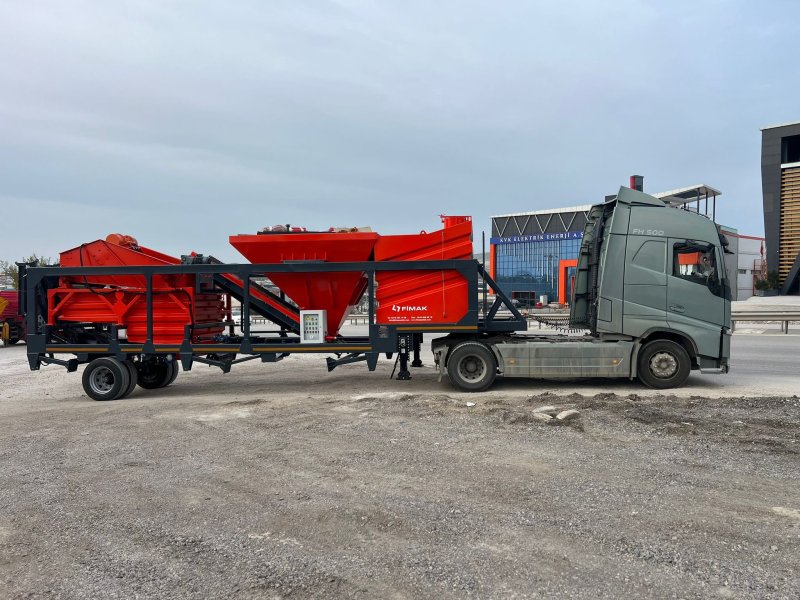

Aggregate Washing Machine
The Mobile Aggregate Washing Machine consists of an aggregate loading silo, screen feed and truck loading conveyors, washing grid, clean and dirty water tanks, pumps, and filters. Its compact design allows it to be easily transported from site to site with minimal installation time.
Highly efficient screens equipped with high-frequency motors. Supplied with a control panel for direct generator connection or fully wired to a main system control panel. The Aggregate Washing Machine is managed from a single control panel. The system can be powered directly from the plant or a generator.
<span> </span>
| MODEL | |
|---|---|
| TECHNICAL SPECIFICATIONS | FMK AYM-80 |
| DIMENSIONS (LENGTH x WIDTH x HEIGHT) mm | 10.1x2500x3900 |
| WEIGHT (kg) | 3.600 |
| CHASSIS TYPE | MOBILE |
| AGGREGATE BUNKER CAPACITY (m³) | 7 |
| CLEAN WATER TANK | 2 |
| DIRTY WATER TANK | 2 |
| SCREEN MOTOR POWER (kW) | 26,5 |
| TOTAL MOTOR POWER(kW) | 30 |
